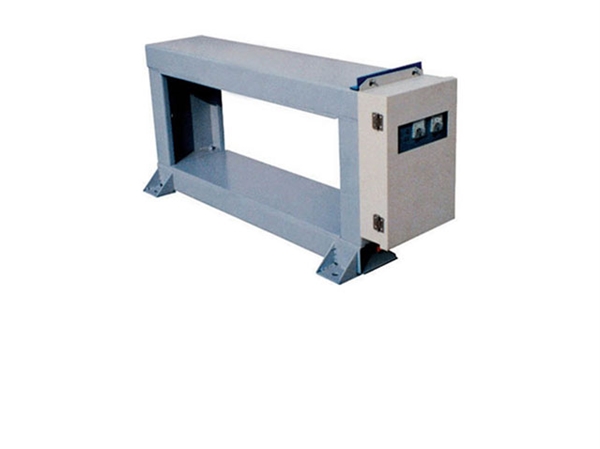

The GJT-B series metal detector is currently the latest product in the field of metal detection in China. The circuit design adopts Shengxin metal detection technology - digital phase shifting and related detection technology, with stable performance. High detection sensitivity and strong anti-interference ability.

The above equipment is mainly used in belt conveyors in industries such as thermal power generation, cement, papermaking, non-magnetic mining, forestry, environmental protection, building materials, food processing, and grain. It uses the change signals generated when metal enters the sensor to process and drive the actuator (electromagnet, motor switch) through electronic technology, thereby eliminating harmful metals. It can also be manually removed.

Features: It is a sensitivity debugging and setting system, with a highly sensitive design that can detect super large metals and sound and light alarms.

Detection range: metals such as iron, aluminum, stainless steel, and table metal.

Timer function: The relay will release after a delay of 1-10 seconds after suction.

Control output: Relay contact output. A pair of normally open. A pair of normally closed.

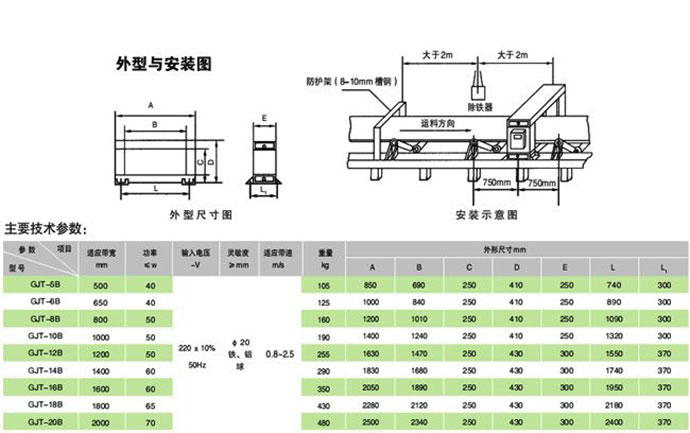

Installation method: The sensor is installed on the belt frame. The amplitude of the belt frame should be less than 0.5m, and when the amplitude exceeds 0.5mm. The sensor bracket should be installed separately.
