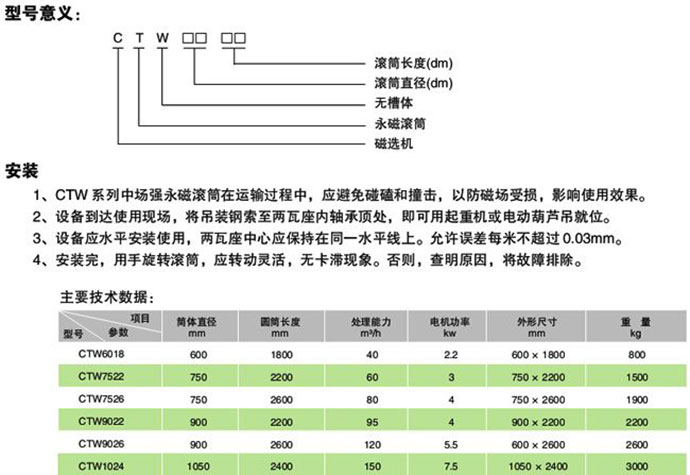

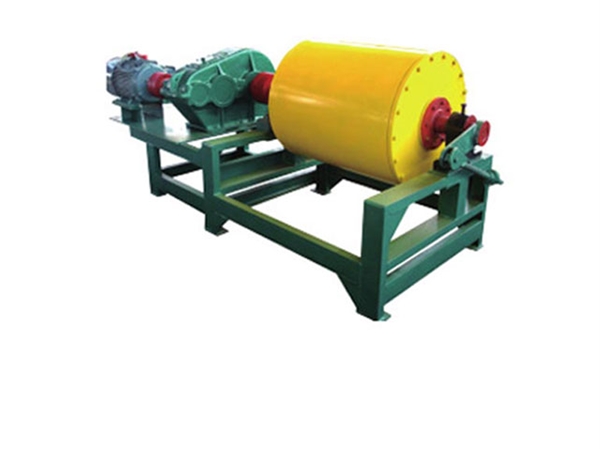

The CTW series permanent magnet drum is a dry selection type mid field high-intensity magnetic separation equipment, and the magnetic source adopts a composite magnetic system composed of neodymium iron boron hard magnetic material and iron ferrite, which is known as the "magnetic king". The magnetic field strength on the surface of the cylinder can reach 2800GS, 3200GS, and 4200GS to meet different selection requirements.

The CTW series permanent magnet drum is widely used for extracting iron powder from sand, iron ore, and river sand, and is currently the ideal equipment for extracting iron powder from river sand.

Working principle of water selection

After adding water to the river sand extracted from the riverbed, it enters a sieve to remove coarse stones and then enters a tank with a homogenizer plate. The slurry, which is diluted and rinsed with water again, is evenly fed to the selection area with high magnetic force on the surface of the drum. Among them, high-grade iron sand is magnetically adsorbed on the surface of the cylinder and transported to the lower washing area by the rotating cylinder. After washing away the accompanying river sand with washing water, it is transported to the mining area and washed by the water flow to the iron sand collection tank, becoming high-grade iron sand. Among them, non-magnetic sediment is not affected by magnetic force and directly enters the tail groove for discharge. Thus achieving the purpose of extracting iron powder.
