一、 Working principle

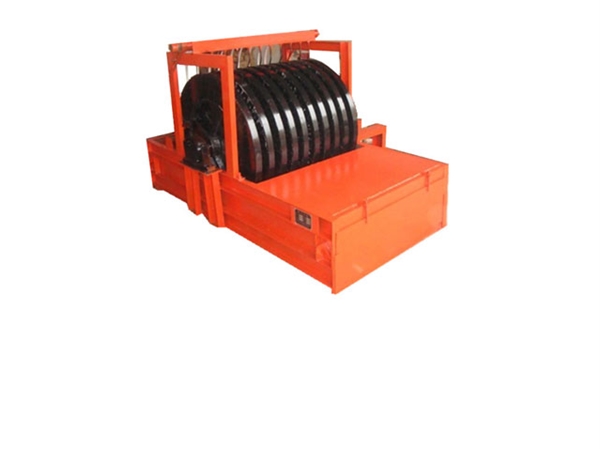

The disc type tailings recycling machine consists of five main parts: the main unit, the unloading device, the ore collection tank, the chute, and the frame. The working principle is that the host disk is installed in a chute, and the slurry flows in from one end of the chute and passes through the gap between the disk and the disk. The magnetic minerals in the slurry are adsorbed on the surface of the disk, and the remaining non-magnetic mineral slurry flows out from the other end of the chute. The host disk rotates, and the magnetic minerals adsorbed on the disk surface are carried out of the slurry surface. When entering the unloading area, the unloading device inserted between the disk gaps and rotating throws the magnetic minerals adsorbed on the magnetic surface into the ore collection tank, which collects and outputs them.

二、 Advantages of disc tailings recycling machine

1. Magnetic field layout: The magnetic pole spacing between disks is small, and there is no zero magnetic field between disks.

2. Unloading: Unloading is a non-contact forced unloading process. There is a layer of mineral powder left on the surface of the disk as a protective layer, which makes the surface of the disk wear free, increases the lifespan of the whole machine by 8-10 times, and also improves the grade of recovered magnetic minerals.

3. Large processing capacity: This machine is specially designed for tailings reselection, and its structure has the characteristics of processing high flow, low-grade tailings, which is several times or even more than ten times the processing capacity of existing drum magnetic separators.

4. High recycling rate: All materials passing between disks are subjected to the action of a magnetic field. Magnetic minerals are fully recovered. High recycling rate.

5. Water saving: Due to the use of a unique magnetic field layout. Magnetic minerals contain a large amount of water, and the unloaded minerals are in a flowing state. Basically, it can be done without adding water or with a small amount of supplementary water.

6. Energy saving: The processing capacity of a disc type tailings recycling machine is several times or even more than ten times that of other ordinary equipment. The installed capacity is only a few kilowatts. Therefore, the energy-saving effect is significant.

7. Easy installation: The disc type tailings recycling machine has a large processing capacity, small footprint, and small difference in feed and discharge levels. It can be installed in places with tailings chutes.

8. High economic benefits: Small equipment investment, high output efficiency; The annual output benefit is usually several times or even more than ten times the equipment investment.
