Main features:

1. The all steel frame structure has good system stability performance.

2. The Shenke scale dedicated reducer ensures long-term stable operation.

3. The unique belt tensioning and automatic correction functions enable the scale body to operate for a long time without maintenance.

4. The scale body is equipped with a belt inner and outer cleaning device, which effectively overcomes the adhesion of attached materials to the belt.

5. By adopting a dual sensor (balance beam or corrugated tube) direct weighing structure, the error caused by material imbalance has been successfully solved, greatly improving the measurement accuracy.

6. Adopting a digital acquisition module with an effective resolution of up to 1 million; Collection rate of 50 times per second; Annual drift less than 50PPM; The temperature drift is less than 50PPM.

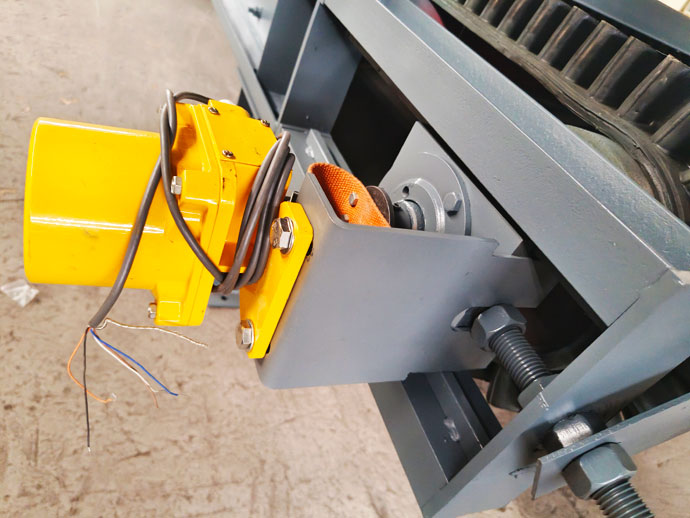

7. The belt speed measurement adopts gear speed measurement or rotary encoder speed measurement.

Technical indicators:

1. Measurement accuracy: ± 0.5%

2. Control accuracy: ± 1%

3. Speed range: 10:1

4. Working mode: continuous

5. Belt width: 300-1800mm

6. Production range: 0.1-1600T/H

Equipment selection:
