Main features:

1. Specially designed for measuring conveyor belt materials.

2. According to speed, it can be divided into single roller, double roller, triple roller, and quadruple roller.

3. Unique fully suspended structure.

4. The use of 2 (or 4) sensors (balance beams) for direct weighing structure has successfully solved the errors caused by material weighing and lever weighing, greatly improving the measurement accuracy.

5. Adopting a digital acquisition module with an effective resolution of up to 1 million; Collection rate of 50 times per second; Annual drift less than 50PPM; The temperature drift is less than 50PPM.

6. Gear speed measurement or rotary encoder speed measurement are used for speed measurement.

Technical indicators:

1. Measurement accuracy: cumulative measurement ± 0.5% -3%

2. Weighing capacity: below 6000T/H

3. Belt speed: 0.1-4M/s

4. Belt width: 400-2200mm

5. Belt inclination angle: 0-17 °

6. Working mode: continuous

7. Supporting instrument SCK-6610

8. Instantaneous current setting: 4-20mA (fully isolated power and signal)

9. Communication: RS 485

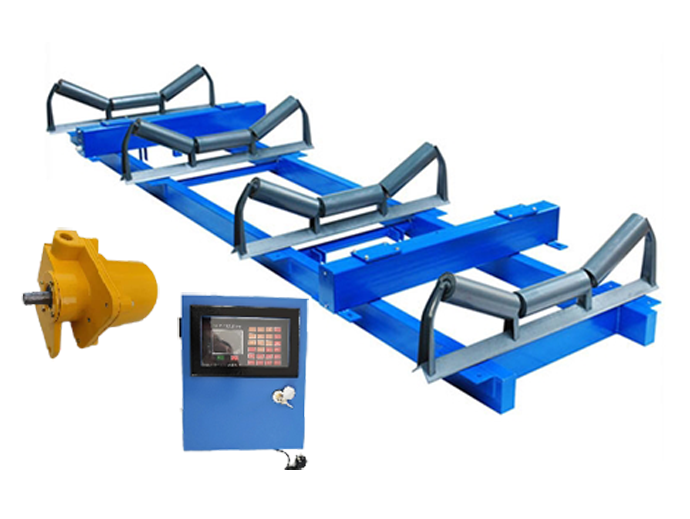

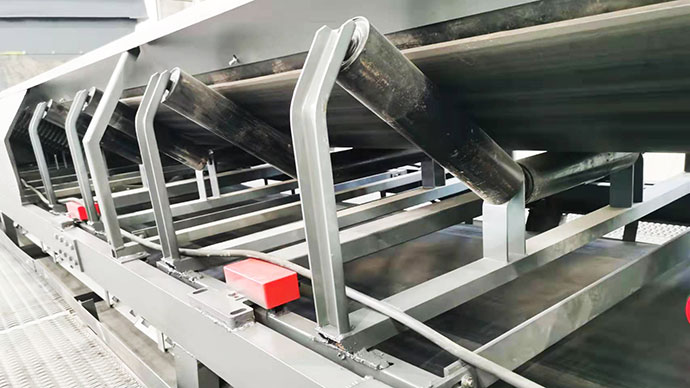

17A type

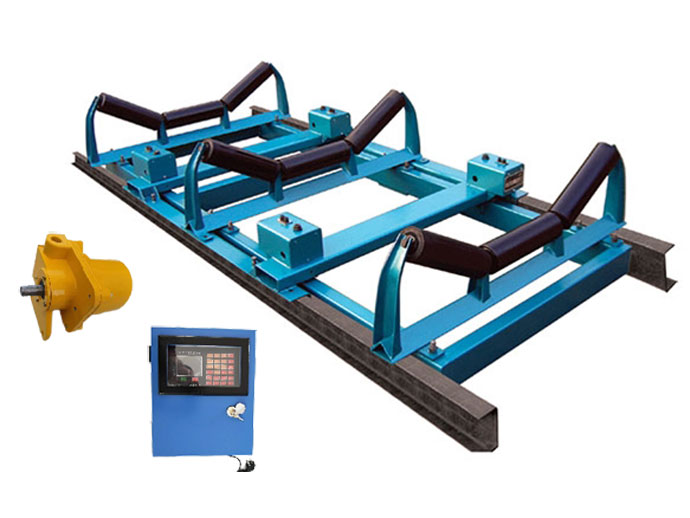

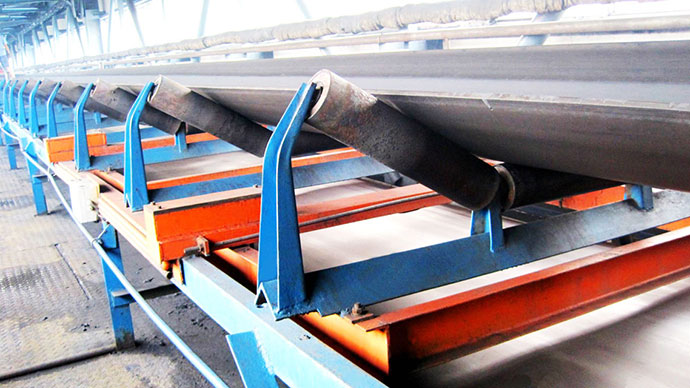

17B type

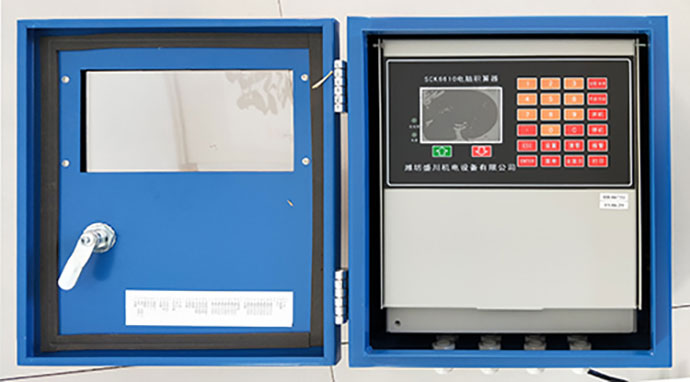

Introduction to Control Instruments:

The belt scale instrument adopts SCK-6610, on-site installation type, controlled by ARM microprocessor, processes the weight signal and belt speed signal of the weighing sensor, calculates the flow rate and cumulative amount of flowing materials, and displays them on the instrument. At the same time, the instrument is equipped with a built-in PID regulator, providing programmed current output and remote pulse counting output. Communicate with the upper computer through RS-232, RS-485, CAN (optional) interfaces. The instrument can display instantaneous flow rate, total cumulative amount, shift production, daily production, annual production, etc

The instrument adopts a fully Chinese operating interface, which is intuitive and easy to operate. And it has multiple automatic detection functions, making it easy for users to calibrate and maintain.

Environmental parameters:

Indoor/Outdoor: The installation location should be close to the weighing sensor, and attention should be paid to dust and moisture prevention.

Storage temperature:- 40℃ —+70℃

Operating temperature:- 10℃ — +50℃

Maximum relative humidity: 95%

Power Supply

110~265VAC      50Hz~60Hz

The weighing sensor:

The instrument provides 9VDC ± 1%, 250mA excitation power supply, capable of parallel connection of 8 350R weighing sensors

Sensitivity, 0.5mV/V-4mV/V

Maximum input signal of 60mV

Shielding grounding of weighing sensor

Can simultaneously receive two weighing signals

Speed input:

Can simultaneously receive two speed inputs and provide 24V 150mA drive for external use. Speed input form: open collector or TTL, speed pulse range: 5-3000Hz.

Mainboard digital input port

The instrument motherboard provides 4 programmable input ports to receive dry contact switch signals.

Mainboard digital output port

The instrument panel provides four programmable dry contact output ports. Output load capacity: AC250V 7A AC120V 10A.

Communication:

Three independent channels can communicate simultaneously: one is a printer interface (RS232) that can print instrument data through an external printer; One standard RS-232; One standard RS-485 interface (isolated and protected)

Current output:

Four channels: proportional to flow current or flow control current, with programmable output range of 4-20 or 0-20mA.

Current input:

Two channels: control current from remote (DCS), input range can be selected from 4-20mA or 0-20mA.

Display:

Adopting a true color TFT 3.5-inch screen with a resolution of 320 * 240, it can display up to 16 * 16 Chinese characters, 15 lines * 20 characters. Different color displays allow you to intuitively distinguish the operating status of the instrument.
