RCYZ pipeline permanent magnet automatic iron remover continuously, automatically and effectively removes iron impurities from materials, with high temperature resistance, strong magnetic force, long service life, and no need for special supervision; The output of the grinding machine has increased by more than 15%, and the wear of steel balls, steel sections, and lining plates has been reduced by more than 20%.

characteristic:

1. The continuity and automation of the iron removal process have been achieved. After the equipment is started, there is no need for supervision, and iron impurities are automatically separated and discharged outside the machine.

2. Using high remanence neodymium iron boron as the magnetic source, multiple sets of moving magnetic groups are utilized to capture iron impurities, resulting in high iron removal efficiency and a novel structure.

3. Suitable for enclosed material conveying systems, with no dust escaping during operation.

4. The power source adopts a low-power reduction motor, which is small in size, light in weight, reliable and stable in operation, with few faults, easy to use, and easy to maintain.

5. By using special wear-resistant materials, the service life is doubled.

working principle:

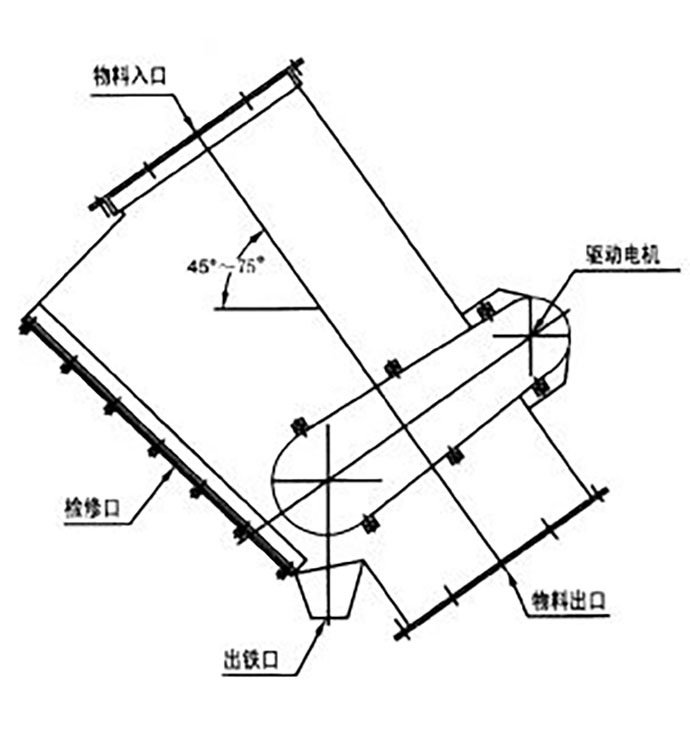

The iron remover is connected in series in a material conveying pipeline with an inclination angle of 45 ° -75 °. When the material flows through the iron remover, the ferromagnetic substance in it is adsorbed on the manganese steel pipe wall of the pipeline iron remover and gradually slides towards the iron outlet with the movement of the permanent magnet. Implement separation from materials. At the tapping point, the permanent magnet moves away in the direction of cyclic motion. Ferromagnetic substances lose their magnetic attraction and are discharged from the iron outlet under the action of gravity, achieving automatic iron removal of the material.

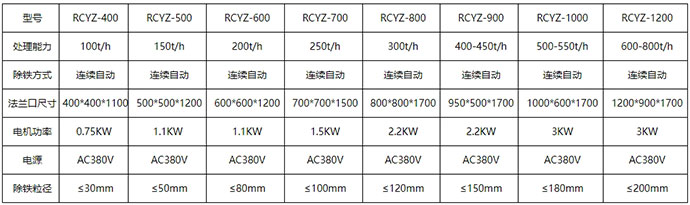

Main technical parameters:
