Product Overview

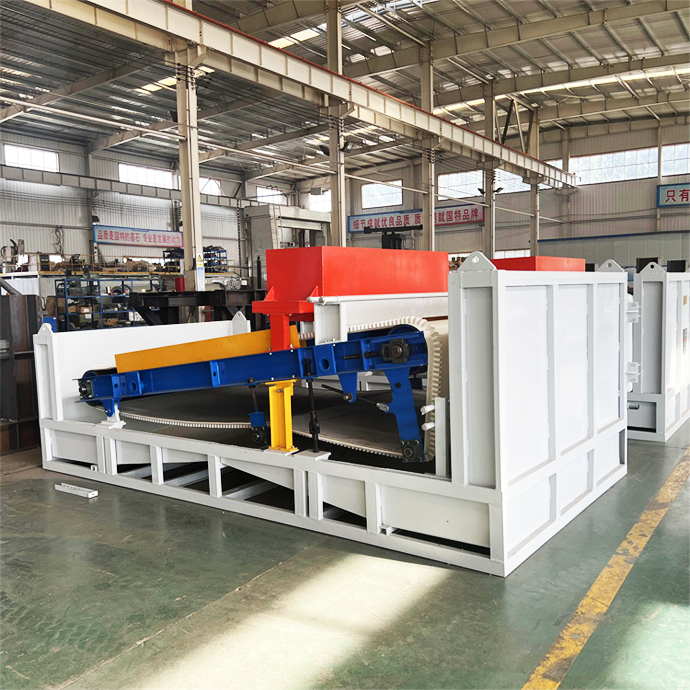

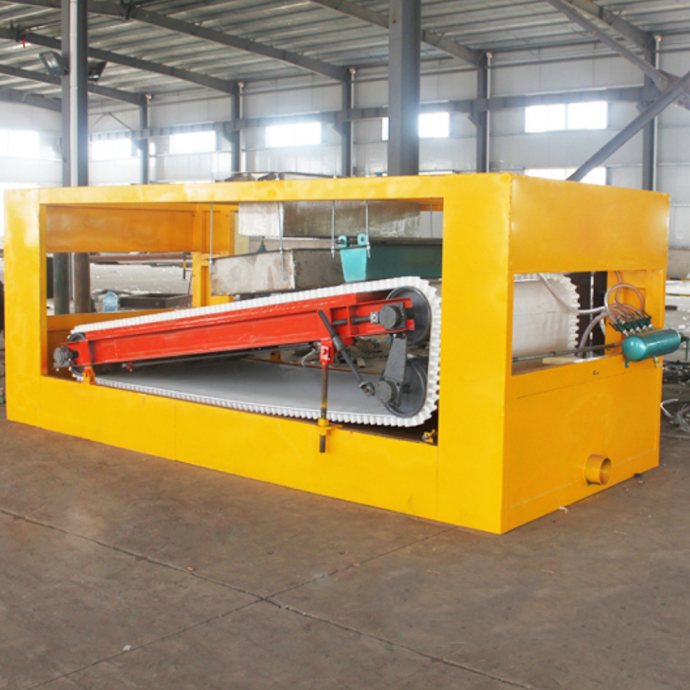

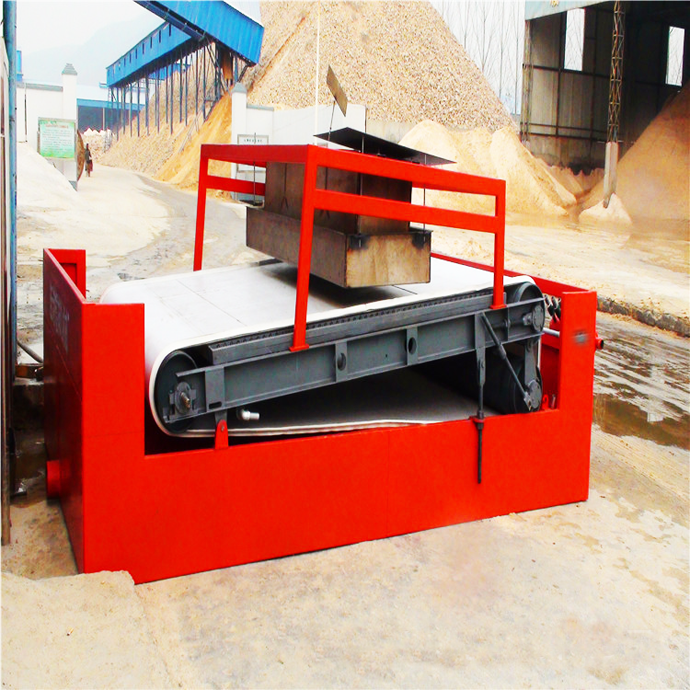

The high gradient flat magnetic separator is a new type of high gradient strong magnetic separator. By effectively arranging over a thousand strong magnets, the magnetic field strength on the entire surface of the flat plate reaches 14000GS, and the magnetic field gradient covers the entire sorting area. It can effectively process various weak magnetic ores, especially for manganese ore, hematite, limonite, and specularite, with excellent processing effects. It can also be used for high-purity iron removal of non-metallic materials, effectively reducing the iron content in potassium feldspar, fluorite, and quartz sand.

Technical features

1. The surface magnetic field strength is high, and various models of equipment ranging from 6000-14000GS can be customized according to customer needs.

2. The height of the work area can be adjusted to better meet the needs of various terrains.

3. Adopting a belt structure, the sorting effect is good.

working principle

The high gradient flat plate magnetic separator adopts a belt sorting structure, and the material can be magnetically stirred multiple times from feed to discharge in the entire working area under the drive of the belt. At the same time, non-magnetic tailings are removed under the flushing effect of water flow. Magnetic minerals are transported to the demagnetization zone of the plate separator by the skin belt, and then the magnetic minerals are removed through the demagnetization device to complete the beneficiation process. The whole machine has low power, large processing capacity, high magnetic field strength, and achieves good quality, which can obtain greater benefits.

Technical parameters of flat magnetic separator
